Analogue High Definition Cameras
AHD CCTV stands for “analog high definition”. It is a new HD surveillance video standard for CCTV cameras and DVRs. AHD currently supports High Definition 720p,1080p & 4MP, 5MP & 8MP AHD cameras right now.
Surveillance cameras come in a variety of shapes and sizes, each with their own advantages and disadvantages. When trying to determine which camera is best for your situation, the following aspects should be considered:Distance from the camera to the desired field of view, or the actual location the camera is viewing/recording.Width of the field of view you’re looking for Lighting changes that occur, or low/high lighting requirements
Whether you need color or black and white (B&W works well in low lighting)
Buyers need to consider all of these factors when determining which camera is right for them, because there is simply not a camera that works with every individual circumstance.
It is important to evaluate each individual location when deciding to purchase a camera system.









Click here to view AHD camera footage on both 2MP, 4MP, 5MP, 8MP







TSDSL20HTC200ESL SONY Starvis - 2MP
Vandalproof IR Dome Camera IR LED: ¢5X24PCS IR range: 20M 2.8mm Lens
Vandalproof IR Dome Camera
IR LED: ¢5X24PCS IR range: 20M
2.8mm Lens
Black Rubber Ring
Size: ¢94 x 69(H) mm
Weight: 450g
1/2.7" 2.1MP CMOS Sensor, 1080P/960H, With IR-CUT
DWDR, 3D NR, Sense-up, OSD
**Supports 960H and HD-AHD
2.1 Megapixel 1080P
3M Pixels Lens

TSDSHR30HTC200ESL - SONY Starvis 2MP
Vandalproof IR Dome Camera IR LED: 14μ x 24PCS Infrared LEDIR range: 30M 2.8-12mm Manual Zoom
Vandalproof IR Dome Camera 4 in 1 Camera **Supports AHD,CVi,TVi, 960H
NEW IR LED: 14μ x 24PCS IR range: 20 - 30Mtrs
2.8-12mm Manual Zoom Lens Black Rubber Ring Size: ¢131 x 93(H) mm
Weight: 800g 1/2.8" SONY 2.1MP Starvis Back-illuminated CMOS Sensor, 1080P/960H, With IR-CUT, WDR, DNR, UTC, OSD
2.1 Megapixel 1080P

TSDSHT30HTC200ESL SONY Starvis - 2MP
Vandalproof IR Dome Camera IR LED: 14μ x 24PCS Infrared LED IR range: 30M 2.8-12mm Manual Zoom
Vandalproof IR Dome Camera 4 in 1 Camera **Supports AHD,CVi,TVi, 960H
NEW IR LED: 14μ x 24PCS IR range: 20 - 30Mtrs
2.8-12mm Manual Zoom Lens Black Rubber Ring Size: ¢131 x 93(H) mm
Weight: 800g 1/2.8" SONY 2.1MP Starvis Back-illuminated CMOS Sensor, 1080P/960H, With IR-CUT, WDR, DNR, UTC, OSD
2.1 Megapixel 1080P

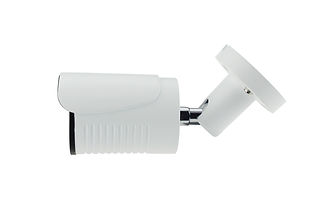

TSBCF60HTC200SL - SONY Starvis 2MP
Vandal Resistant Bullet Camera
IR LED: ¢5 (12μ) x 72PCS
4 in 1 Camera **Supports AHD,CVi,TVi, 960H IR range: 60M
2.8-12mm Manual Zoom Lens Water resistance: IP66
Anti-Cut 3-Axis Bracket Size: 312(W) x 133(H) x 102(D)mm
Weight: 1.8KG 1/2.8" SONY 2.1MP Starvis Back-illuminated CMOS Sensor, 1080P/960H, With IR-CUT, WDR, DNR, UTC, OSD
2.1 Megapixel 1080P
1/2.7" Sony Starvis 2.1MP CMOS Sensor, 1080P/960H, With IR-CUTLow Illumination, DWDR, 3D NR, Sense-up, OSD2.1 MP/1060P/960H/With IR-CUT**Support 960H and HD-AHD

TSDSHR30HTC2004XESL Motorised SONY Starvis - 2MP
Vandalproof IR Dome Camera IR LED: 14μ x 24PCS Infrared LEDIR range: 30M 2.8-12mm Motorised Zoom & Auto Focus
1/2.8" SONY 2.1MP Starvis Back‐illuminated CMOS Sensor, 1080P, With IR‐CUT
WDR, 3DNR, Defog, Sense‐up, UTC, OSD 2.8‐12mm 2.8-12mm Motor Zoom & Auto Focus Lens
NEW IR LED: 14μ x 24PCS
Black Rubber Ring
Size: ¢131 x 93(H) mm
Weight: 900g
1/2.8" SONY 2.1MP Starvis Back-illuminated CMOS Sensor, 1080P/960H, With IR-CUT, WDR, DNR, UTC, OSD
2.1 MP 1080P, 1.0MP 720P, 960H CVBS
3M Pixels Lens

TSDTC20HTC200ES SONY Starvis - 2MP
Vandalproof IR Dome Camera IR LED: 14μ x 24PCS Infrared LEDIR range: 30M 2.8 fixed
Vandalproof IR Dome Camera
4 in 1 Camera **Supports AHD,CVi,TVi, 960H
1/2.8ʺ SONY 2.1MP Starvis Back‐illuminated
With IR‐CUT, Low Illumination, DWDR, 3D
NR, Sense‐up, UTC, OSD
2.1 Megapixel 1080P
2.8mm Lens 3M Pixels Lens

TSDSL20HTC500FS SONY Starvis
Vandalproof IR Dome Camera IR LED: ¢5X24PCS IR range: 20M 2.8mm Lens
Vandalproof IR Dome Camera
IR LED: ¢5X24PCS IR range: 20M
Black Rubber Ring
Size: ¢94 x 69(H) mm
Weight: 450g
WDR
1/2.9" SONY 6MP Starvis Back‐illuminated CMOS sensor, 5M, With IR‐CUT, DWDR, DNR, UTC, OSD
AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps/15fps; CVI: 4M@30fps
6M Pixels Lens
2.8mm Lens

TSDSHR30HTC500FS - SONY Starvis 5MP
Vandalproof IR Dome Camera IR LED: 14μ x 24PCS Infrared LEDIR range: 30M 2.8-12mm Manual Zoom
Vandalproof IR Dome Camera
**Supports AHD 960H
NEW IR LED: 14μ x 24PCS
IR range: 20 - 30Mtrs
2.8-12mm Manual Zoom Lens
WDR
Black Rubber Ring
Size: ¢131 x 93(H) mm
Weight: 800g
1/2.9" SONY 6MP CMOS sensor, 5M, With IR‐CUT, DNR, UTC, OSD, AHD: 5M@20fps/12.5fps, 4M@30fps; TVI:
5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
6M Pixels Lens

TSDSHT30HTC500FS SONY Starvis - 5MP
Vandalproof IR Dome Camera IR LED: 14μ x 24PCS Infrared LED IR range: 30M 2.8-12mm Manual Zoom
Vandalproof IR Dome Camera
**Supports AHD 960H
NEW IR LED: 14μ x 24PCS
IR range: 20 - 30Mtrs
2.8-12mm Manual Zoom Lens
WDR
Black Rubber Ring
Size: ¢131 x 93(H) mm
Weight: 800g
1/2.9" SONY 6MP CMOS sensor, 5M, With IR‐CUT, DNR, UTC, OSD, AHD: 5M@20fps/12.5fps, 4M@30fps; TVI:
5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
6M Pixels Lens

TSBCF90HTC500FS - SONY Starvis 5MP
Vandal Resistant Bullet Camera
IR LED: ¢5 (12μ) x 72PCS
4 in 1 Camera **Supports AHD,CVi,TVi, 960H
IR range: 60M
WDR
2.8-12mm Manual Zoom Lens
Water resistance: IP66
Anti-Cut 3-Axis Bracket
Size: 312(W) x 133(H) x 102(D)mm
Weight: 1.8KG
1/2.9" SONY 6MP CMOS sensor, 5M, With IR‐CUT, DNR, UTC, OSD, AHD: 5M@20fps/12.5fps, 4M@30fps; TVI:
5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
6M Pixels Lens

TSBCD20HTC500FS - SONY Starvis 5MP
Vandalproof IR Bullet Camera
IR LED: ¢14μ x 18PCS IR range: 20M
Size: ¢160.8(W) x 62(H) x 62(D)mm
Weight: 380g
WDR
1/2.9" SONY 6MP Starvis Back‐illuminated CMOS sensor, 5M, With IR‐CUT, DWDR, DNR, UTC, OSD
AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps/15fps; CVI: 4M@30fps
6M Pixels Lens
2.8mm Lens

TSBCF90HTC5005XESM Motorised Bullet - SONY Starvis 5MP
Vandal Resistant Bullet Camera
IR LED: ¢5 (12μ) x 72PCS
4 in 1 Camera **Supports AHD,CVi,TVi, 960H
IR range: 60M
WDR
2.8-12mm Motorised Zoom Lens
Water resistance: IP66
Anti-Cut 3-Axis Bracket
Size: 312(W) x 133(H) x 102(D)mm
Weight: 1.8KG
1/2.9" SONY 6MP CMOS sensor, 5M, With IR‐CUT, DNR, UTC, OSD, AHD: 5M@20fps/12.5fps, 4M@30fps; TVI:
5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
6M Pixels Lens

TSUGSSA
1/3" SONY CCD, 960H, 720TVL, Low Illumination, OSD, 3D NR, DEFOG,
Sense-up, UTC Effio-A
UFO Shape Camera
Board Lens 3.6mm/F2.0
Size: ¢75 x 74(H) mm
Weight: 300g

TSB100
White IR Dome bracket
Suits:
TSIRDNTAD100

TS-B101
Charcoal wall bracket
Suits:
TSIRDCAD100

TSB-170W
White deep base
White Color
TSIRDC/TSIRD Deep Base
SIZE: Ф120*55MM
Weight:370g
Side Opening can match with 6 charge
diameter(UK Standard)

TSB-220W
White Color
LIRDB/LIRDN Deep Base
SIZE: D=94mm E=41mm
Weight: 161g
Material: Metal

TSB-220C
Charcoal Color
LIRDB/LIRDN Deep Base
SIZE: D=94mm E=41mm
Weight: 161g
Material: Metal

TSB-170G
Charcoal deep base
Black-gray
TSIRDC/TSIRD Deep Base
SIZE: Ф120*55MM
Weight:370g
Side Opening can match with 6 charge
diameter(UK Standard)

TSIN30AD200V - 2MP
Vandalproof IR Dome Camera
IR LED: ¢5X36PCS IR range: 30M
2.8-12mm Manual Zoom Lens
Black Rubber Ring
Size: ¢131 x 93(H) mm
Weight: 800g
1/2.7" OV 2.1MP CMOS Sensor, 1080P/960H, With IR-CUT
Low Illumination, DWDR, 3D NR, Sense-up, OSD2.1 MP/1060P/960H/With IR-CUT
Low Illumination, DWDR, 3D NR, Sense-up, OSD
**Support 960H and HD-AHD

TSIN90AD200V - 2MP
IR LED: ¢5X72PCS IR range: 60M
2.8-12mm Manual Zoom Lens
Water resistance: IP66
Anti-Cut 3-Axis Bracket
Size: 312(W) x 133(H) x 102(D)mm
Weight: 1.8KG
1/2.7" OV 2.1MP CMOS Sensor, 1080P/960H, With IR-CUT
Low Illumination, DWDR, 3D NR, Sense-up, OSD2.1 MP/1060P/960H/With IR-CUT
**Support 960H and HD-AHD

TS-CH9381HD - Intelleigent Face Detection
AVS DSP + Sony sensor 1000tvl
Intelligent face, motion detection camera/face auto zoom /Smart facial recognition WDR,1000TVL
New Features:
* Image storage
* High Clear image reproduction
* Optics double frezuency WDR
* 3D/2D noise reduction(HDNR)
* DSS(digital slow shutter)
* HLR(high light reduction)
*Face metering compensation
* Digital demist Process
* Face Tracking auto Zoom
* Adaptive BLC(back light compensation)
* Intelligent IR exposure
* Color Rolling suppression
* 256X digital Zoom
* Privacy mask
* Face detection
* Motion Detection
* 4/6/8/12mm
* OSD
